Temperature display scheme of electric faucetApplication scheme



Brief introduction:



 This scheme is applicable to the real-time temperature display of the outlet water of the electric faucet, with the functions of temperature detection and temperature display.


Sampling:

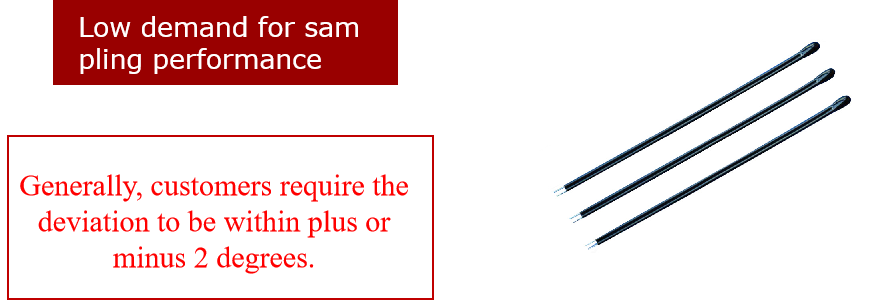

 The temperature display of the electric heating faucet is sampled through the thermistor probe.


Plan introduction:

 This plan uses HS26P10/HS23P2711

Realize the function of temperature measurement. The temperature signal is obtained by thermistor and converted into digital signal by chip processing;

Other decorative lights can also be controlled by programming according to different needs.

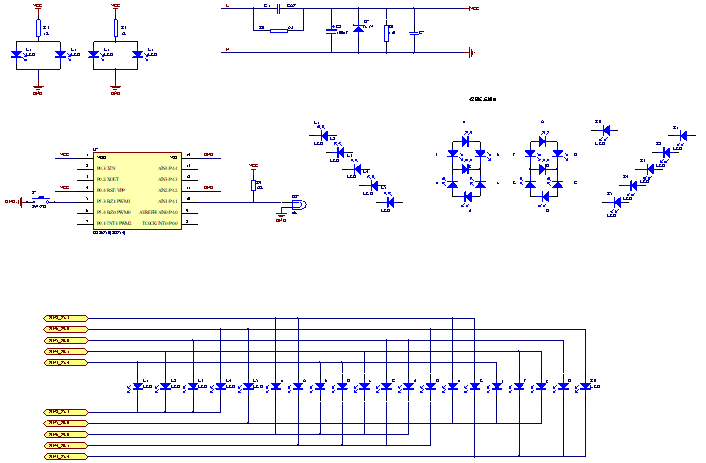

Schematic diagram of the plan:

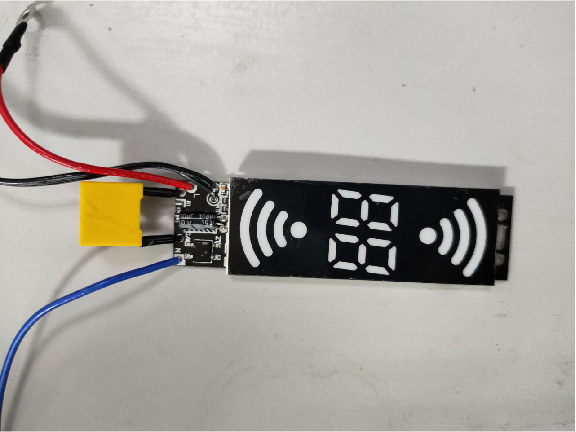

Sample physical display:
